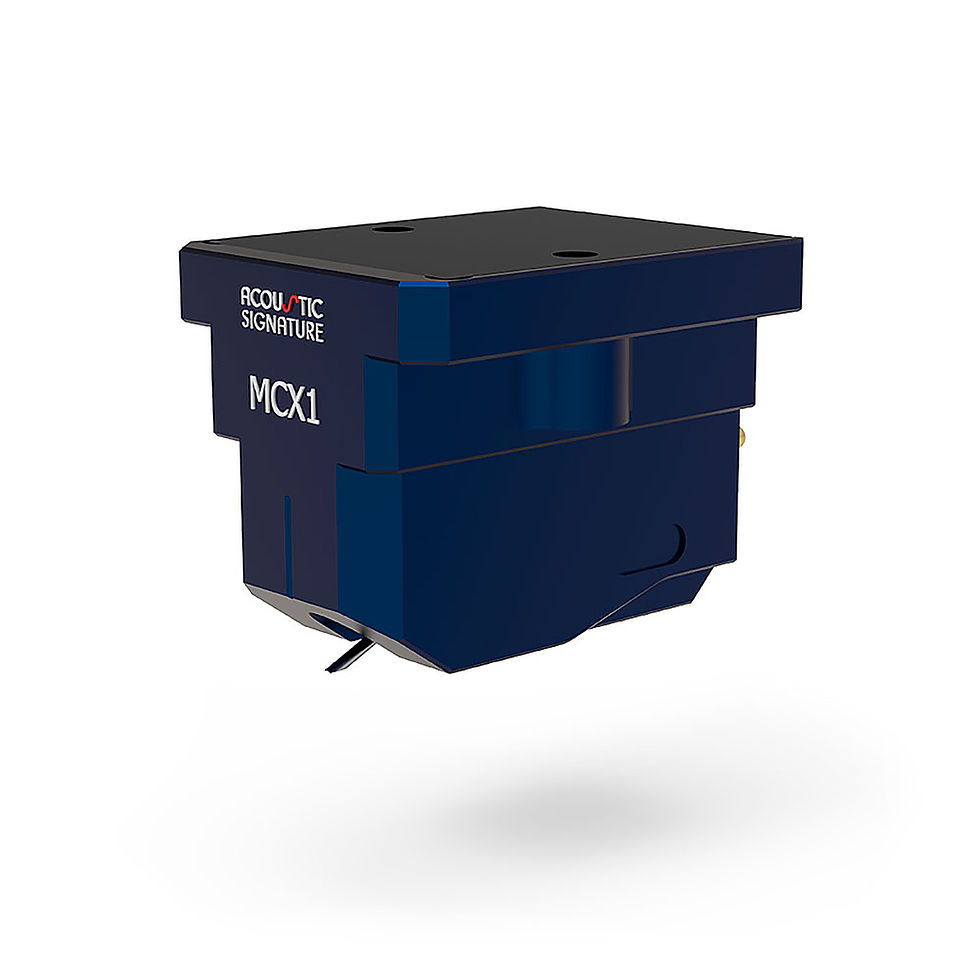

 Acoustic Signature MCX1 MC Cartridge


The Acoustic Signa­ture MCX1 is a modern moving-coil cart­ridge, manu­fac­tured accor­ding to the latest techno­logies – the optimal partner for our NEO tone­arm series. An elliptical stylus assu­ring pre­cise tracking results, copper coils and a CNC-milled and reso­nance-opti­mized chas­sis deve­loped accor­ding to the finite ele­ment design prin­ciple form the basis for a true all-rounder.


Special features:

  • Modern MC cartridge with copper coils
  • Resonance-optimized aluminum chassis
  • Easy mounting
  • Precise tracking due to elliptical stylus
  • Suitable for medium to high mass tonearms


“The combo plays in an easy, transpa­rent way, remains always clean and bullet-proof even with dynamic peaks. This is money well spent.”

(MCX1 with Double X NEO and TA-500 NEO)


Stereoplay 08/2021

—Alexander Rose-Fehling

Acoustic Signature MCX1 Cartridge

  • Cartridge system: Moving-coil
    Stylus type: Elliptical
    Coil material: Copper
    Cartridge chassis: Resonance-optimized aluminum chassis
    Voltage output
    (at 1 kHz, 5 cm/sec.):
    0.55 mV
    Channel balance at 1 kHz: < 1.5 dB
    Channel separation at 1 kHz: > 21 dB
    Compliance, dynamic,lateral: 15 m/mN
    Tracking force range: 2.1 to 2.5 g
    Recomm'd tracking force: 2.3 g (23 mN)
    Frequency range at -3 dB: 20-25,000 Hz
    Frequency response
    20-20,000 Hz:
    ± 2.5 dB
    DC resistance:
    Recommended load: 100
    Cartridge weight: 12.2 g
