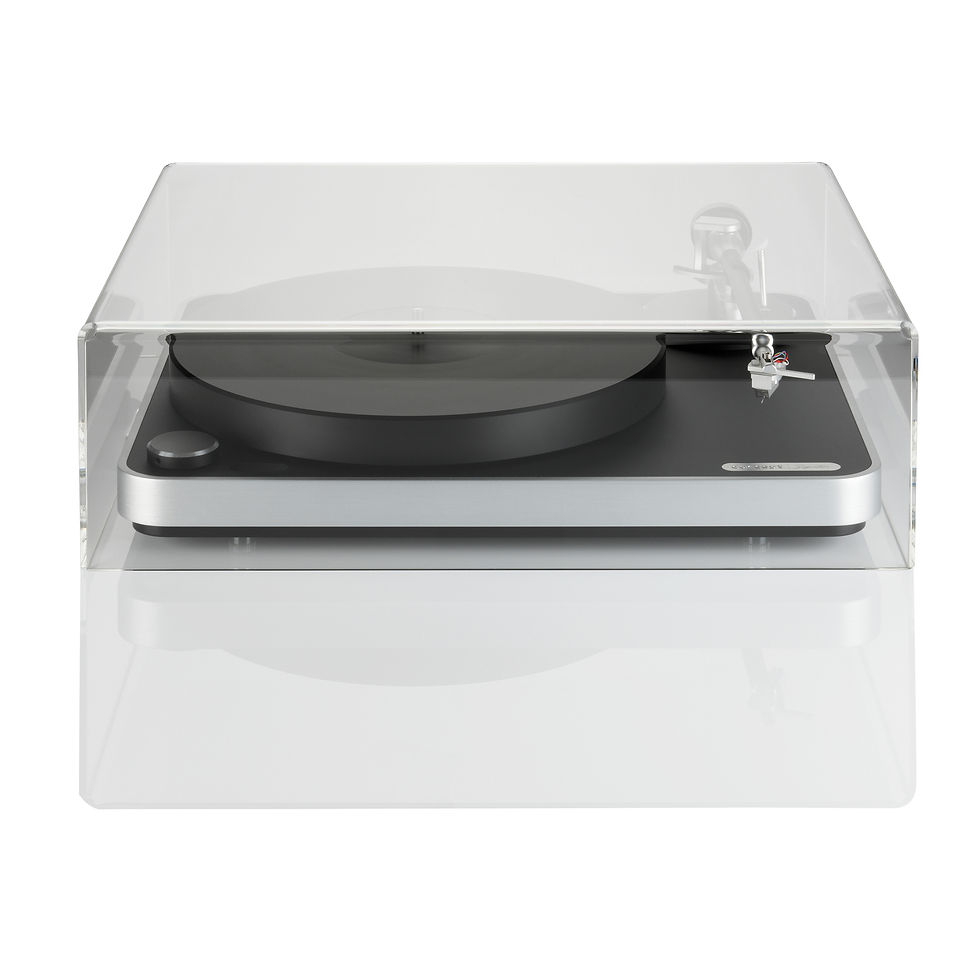

clearaudio CONCEPT Turntable
clearaudio’s vision for the concept: Design an elegantly styled turntable package featuring a level of ground-breaking technology usually only found in high-end turntables, combining plug-and-play simplicity with outstanding sound quality and affordability.
The CONCEPT achieves these highest of requirements, realising the Clearaudio vision.
Beneath the sleek, contemporary exterior is a level of technical sophistication unique to Clearaudio.
The CONCEPT‘s body is carefully crafted from medium-density wood fibre (or, optionally, pressure-formed solid wood) with a selection of smart made-to-match surface finishes. The body’s upper layer incorporates a special high-tech satined plastic compound designed to minimise unwanted resonance.
The DC motor is fed by an external voltage-stabilised power supply and is completely decoupled from the chassis, isolating the record from any mechanical interference.
The CONCEPT tonearm features a magnetic bearing that is friction-free for extremely low distortion and superb performance. The package is completed with the high-quality Clearaudio CONCEPT MM or Clearaudio CONCEPT MC cartridge (toneam and/or cartridge upgrade possible).
With the CONCEPT turntable package, Clearaudio offers you an extremely innovative design that is very affordable.
clearaudio CONCEPT Turntable
CONSTRUCTION DETAILS: Resonance-optimised turntable; chassis comprises medium-density wood fibre (silver / black) or pressure-formed solid wood (wood / dark wood); upper layer incorporates high-tech satined plastic compound. SPEED OPTIONS: 33 ⅓, 45, 78rpm DRIVE UNIT: Decoupled and resonance damped 12V DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies. BEARING: Polished and tempered steel spindle in a sintered bronze housing, running on a teflon thrust-pad. PLATTER: 30mm / 1.18 inch main platter, made out of synthetic material with high-density and excellent dimension /
precision CNC machined surface aluminium sub platterSPEED ACCURACY (MEASURED): ± 0.05% POWER CONSUMPTION: Max. consumption: 2.5 watts
Consumption in operation: 0.5 watts
Off mode: 0.0 wattsTOTAL WEIGHT: Approx. 7.5kg (incl. tonearm and cartridge) DIMENSIONS (W/D/H): Approx. 16.54 × 13.78 × 4.92 inches (with tonearm) DIMENSIONS (W/D/H): Approx. 420 × 350 × 125mm (with tonearm) MANUFACTURER’S WARRANTY: 2 years*
* Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase.
