Our small and discrete floorstanding speaker does not only feature an unprecedented style and elegance, but also a full blown high end performance
30 liters of volume supporting three optimised 5” drivers delivers not only a crisp clear and dynamic midrange but also an impulse perfect tight bass response, which will leave you puzzled how it is even possible to achieve such a grand sound from such a discrete and stylish speaker. The FM-30 is nothing short of a unicorn in the world of loudspeakers.
The design criteria for this small self-supporting speaker was of course to create the best possible performance that would satisfy even the most demanding audiophile. However it was also important to us to create a stylish and elegant looking design aesthetic that would enhance a modern style multifunctional living room. The FM-30 meets and exceeds both goals.
Custom Made Drivers
We develop and adapt each driver for its own specific purpose in every individual speaker model, combining our own team’s wealth of experience together with some of the leading transducer engineers in Denmark. With our approach of developing and adapting the driver to our desired performance and design needs, we benefit from not having to compromize our sonic and visual performance and can simply deliver a better sounding product.
Since the invention of the loudspeaker back in 1925, not much has visually changed to the naked eye - and from the outside, most speakers still look very similar. However, developments during the last decade in the use of high-tech materials, optimized magnet systems, low memory rubber surrounds and mineral filled cones are some of the technologies that we are fully taking advantage of to reach our goal of a perfect sonic perfomance.
FusedMASS Cabinet Technology
The multilayer construction of the Gato Audio FusedMASS cabinet ensures extremely high internal damping, a minimum of resonances and providing extra strength and material stability. By laminating different materials in different thicknesses and adding a special glue, we have intelligently removed the resonance problem that otherwise normally have been approached by just adding more and more material.
PurePHASE Crossover Technology
With our PurePHASE crossover designs we focus on three major technical aspects that seamlessly combines our state-of-the-art transducer designs into a truly outstanding loudspeaker system. Beside the usual job of a crossover - dividing the correct frequencies for each individual driver – the PurePHASE system also provides exact acoustic phase control, low linear group delay and wide linear dispersion too. This crossover technology was developed in house specifically for our FM loudspeaker range.
Lossless Crossover Adjustment
Another special feature of our FM speaker range is the opportunity for the listener to adjust or customise the sonic performance of the loudspeaker. Not only does this gentle sonic adjustment enable the listener to adapt the speaker to their own specific taste, amplifier or listening room – it also ensures that no details are lost and that the listener retains the full, rich original sound.

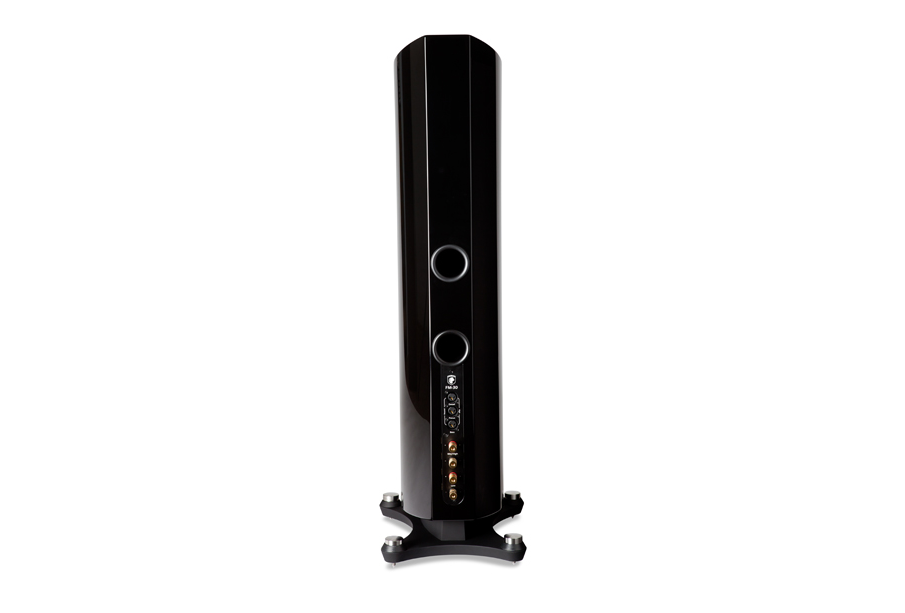

Gato FM-30 Loudspeakers
- Low compression, low hysteresis driver design
- PurePHASE crossover
- FusedMASS cabinet
- Controlled dispersion and phase
- Adjustable adaptation to the listening room
- Elegant magnetic grille cloth
- Designed, developed and build in Copenhagen, Denmark
Frequency response 37 Hz – 35kHz Sensitivity (2,83v) 87dB Recommended power amplifier 50 to 250Watts Nominal impedance 4 ohm Connectors Gold plated binding post / 4mm Plugs, bi-wire Cabinet Laminated FusedMass cabinet Crossover Advanced PurePhase crossover technology
High Frequency 38mm ring radiator, powerful ferrite motor and optimised chamber Mid Frequency 150mm mineral cone, low loss suspension, motor with shorting rings and optimised voice coil Low Frequency 2x 150mm mineral cone, low loss suspension, motor with shorting rings and long lineare throw
Weight & Dimensions
Weight 29 Kg / 64 lb
