 Hana S Series

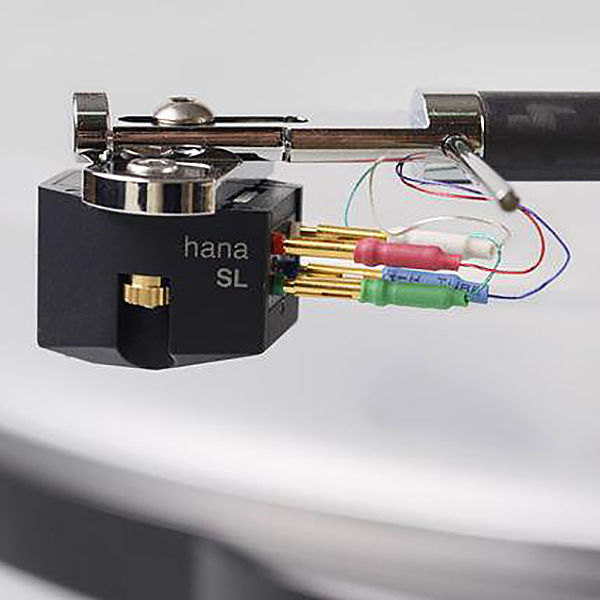

The Hana SL / SH, High output Moving Coil cartridges have a nude natural diamond Shibata-stylus capable of excellent high frequency response. A high rigidity aluminium cantilever with cross-shaped armature offers supreme transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in black.


The Hana SLM (MONO) Moving Coil cartridge has the same nude natural diamond Shibata-stylus and mechanical design as the SL, except for specific design changes to make it capable of perfect mono reproduction.


The Hana SL / SH / SLM bring the listener terrific musical insight and musicality referenced against similar priced cartridges, with low surface noise and all-round ability, suiting all musical genres.


• The SL (Shibata Low output) offers 0.5mv/1KHz output


• The SH (Shibata High output) offers 2.0mv/1KHz output

—so is for use with a moving magnet phono stage, offering Moving Coil sound quality.


• The SLM (Shibata Low output Mono) offers 0.5mv/1KHz output.


See on the Hana website


Hana S Series

  • Model Hana SH Hana SL
    Stylus Nude Diamond Shibata Nude Diamond Shibata
    Cantilever Aluminium Aluminium
    Output Level 2mV/1kHz 0.5mV/1kHz
    Output Balance <1.5dB/1kHz <1.5dB/1kHz
    Vertical Tracking Force 2 gr. 2 gr.
    Trackability 60μm/2gr 60μm/2gr
    Channel Separation 25dB/1kHz 25dB/1kHz
    Frequency Response 15~32,000Hz 15~32,000Hz
    Impedance 130Ω/1kHz 30Ω/1kHz
    Suggested Load Impedance 47KΩ >400Ω
    Cartridge Weight 5 gr. 5 gr.
    Body Color Black Black
