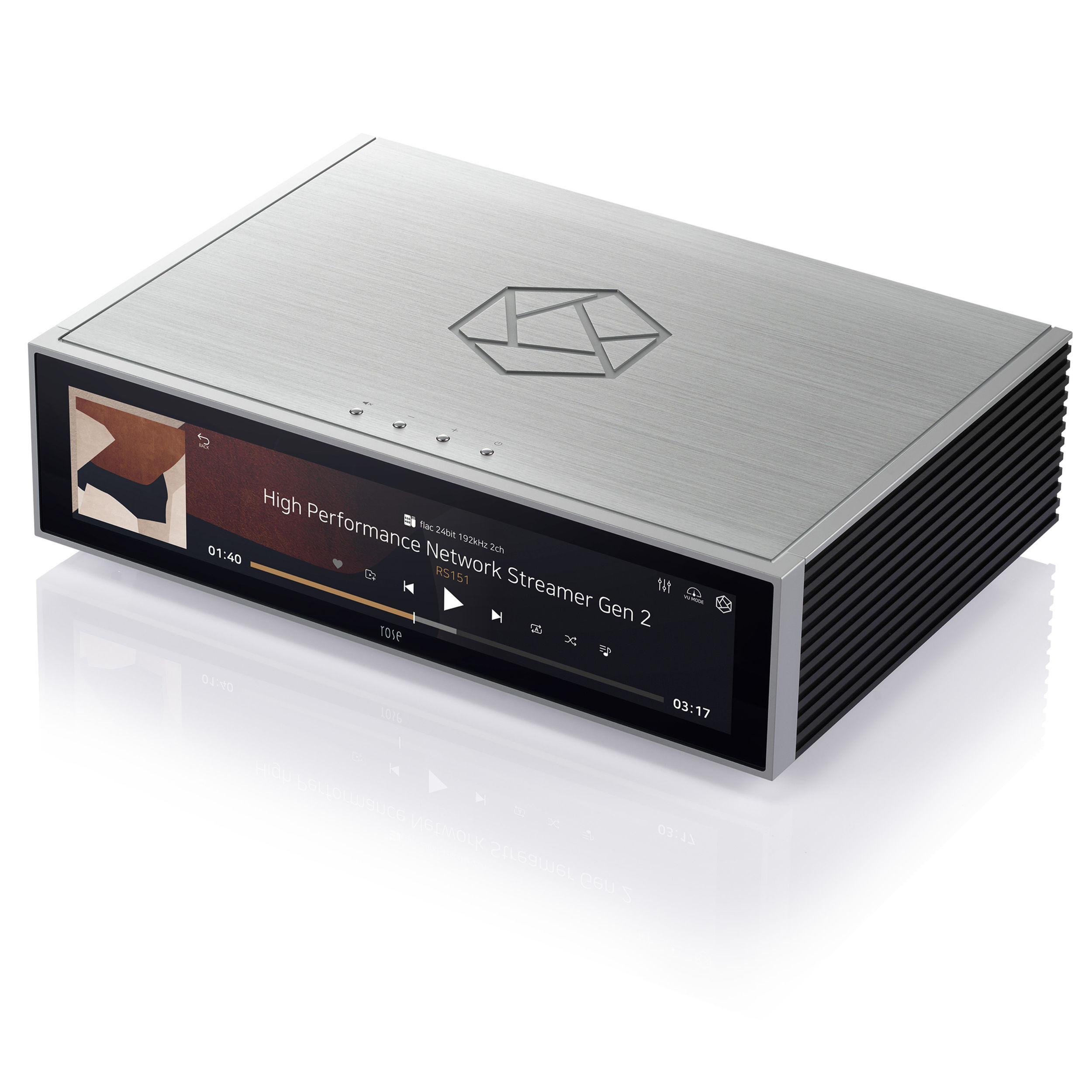

HiFi Rose RS151 Network Streamer Gen2
The RS151 is a network streamer that achieves groundbreaking
improvements i n every aspect.
ROSE's proprietary cutting-edge technologies developed during the RD160 project, combined with the latest flagship DAC chip and sophisticated design, deliver revolutionary advancements in audio performance.
The significantly enhanced processing power, based on a next-generation 8-core CPU, integrates seamlessly with the Full HD wide-view multi-touch display introduced in the RS130, delivering a smoother and more enjoyable playback experience.
With upgrades in performance, functionality, and convenience, the RS151 sets a new standard for high-resolution audio and streaming._____________________________________
Summary of Improvements from RS150B:
Innovative Signal Processing
◦ ROSE DPC™ module (from RD160)
◦ Cutting-Edge DAC Design
Advanced Performance
◦ Sophisticated Design
◦ ROSE NRA™ Filter (from RD160)
Enhanced Speed
◦ 8-Core CPU RK3588
◦ Expanded Library
Intuitive display & Connectivity
◦ 15.4” Full HD Multi-Touch Screen
◦ Upgraded Connectivity_________________________________
HiFi Rose RS151 Network Streamer Gen2
BENCHMARK Input Sensitivity 0dBF 1kHz(Digital), 2Vrms(Analog)Output
Impedance
2.84 ΩOutput Level 9.0Vrms(XLR), 4.5Vrms(RCA)THD + N 0.0002%(XLR), 0.0003%(RCA) (1kHz, 0dBF)Signal to Noise
Ratio
131dB(XLR), 124dB(RCA)Dynamic Range Max 150dB (CCITT filter)Stereo Crosstalk Max -143dB, (20Hz-20kHz)FrequencyResponse20Hz - 75kHz (+/-0.5dB)SAMPLING RATEPCM 44.1kHz~768kHz(8/16/24/32bit per Sample)DSD DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)/DSD512(22.6MHz)SUPPORTED FILE FORMATS Audio WAV, FLAC, ALAC, AIFF, WMA, OGG, APE, DFF, DSF, CDA, M4AMP3, AAC, AMR, EC3, E-EC3, MID, MPL, MP2, MPC, MPGAVideo ASF, AVI, MKV, MP4, WMVMPEG-1/2/4, H.263, H.264/AVC, H.265/HEVC, VC-1, VP8/9, MVCH.264/AVC (Base/Main/High/High10, Level 5.1): Up to 4Kx2K@30fpsH.265/HEVC (Main/Main10, Level 5.1 High-tier): Up to 4Kx2K@60fpsVP9/H.264/H.265: Up to 4Kx2K@60fpsH.264/MVC/VP8 Encoding: Up to 1080p@30fpsTECHNICAL PSUToroidal Linear Power Supply CPU Octa core RK3588 RAM LPDDR4X 8GB GPU ARM Mali-G610 MC4(OpenGL, Vulkan, OpenCL)DAC ES9039 PRO(ESS)Oscillator Highly Precise Femto ClockSTORAGE Internal eMMC Flash 32GB (System Use Only)External 3 × USB 3.0 Type-A1 × 2.5" SSD(SATA 3.0, NTFS, exFAT)
