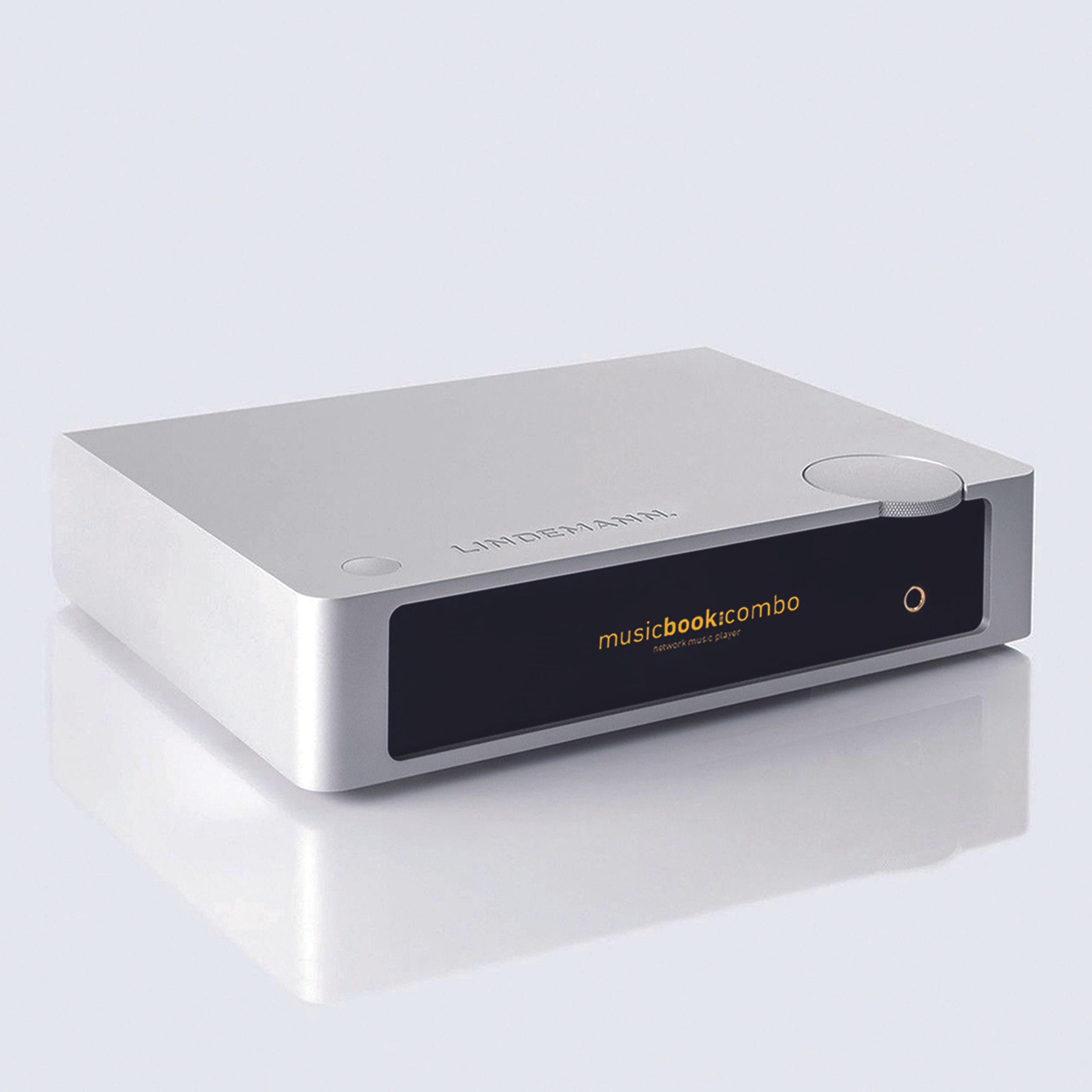

 Lindemann Musicbook: COMBO

The complete music system with Streaming 4.0



The first all-in-one music player from LINDEMANN.  The logical continuation of the extremely successful Musicbook series. Fully equipped, with a unique design and truly audiophile genes!



The Musicbook COMBO joins the proven streaming platform of the Musicbook SOURCE and the power amp technology of the Musicbook POWER. A multitude of features and connectivity options make your tonal dreams come true. Simply connect the matching speakers - and you’re set to enjoy music in its most beautiful form. Rich in detail and yet relaxed, with a large stage or a small ensemble, with vigorous dynamics or soft and soulful.



No matter whether from streaming services or from a music server, from CDs or LPs, almost every playback is possible and conveniently operable via the app. Also the friends of high-quality headphones get their full money’s worth: the built-in headphone amp sets benchmarks in this class. And the icing on the cake is the excellent phono MM input for turntables!



The Musicbook COMBO is our distillate from 30 years of experience in the development of amplifiers and digital sources. A true all-rounder and the new heart of your hifi system for many years to come.

_________________________________



Operation

Use the newly developed LINDEMANN app to conveniently control the Musicbook COMBO. This is available for both Android and iOS, for tablets also in the particularly clear landscape mode. The app offers an easy to understand, intuitive control of the different sources and a comprehensive menu for the device settings. That way operating the Musicbook becomes a breeze!



In addition, the integrated multi-room function allows to run several LINDEMANN streamers in different rooms simultaneously or individually.



And if you still want to use the app of your present streaming provider? Owing to the support of services such as Roon, Spotify Connect and Tidal Connect this is no longer a problem. The Musicbook COMBO will react just as reliably to your inputs and commands.



And when your smartphone happens to be out of sight: with the included remote control or the multi-function jog wheel you always have the essential functions of the Musicbook under control.

___________________________



Technology
The circuitry of the Musicbook COMBO has been optimized – around the powerful streaming platform – for ultimate sound properties.

In the digital-analog converter we use one of best sounding converter blocks ever, the AK4493 from Japanese digital specialist AKM. Musically, this module convinces by an enormous wealth of detail, natural timbres and a perfect timing. Prior to the actual conversion, all digital input signals are passed through an ultra precise re-sampling process using an MEMS femto clock. The thus created data are completely free from clock jitter: the fundamental requirement for perfect sound with digital music! A further improvement comes with the option of converting the digital data into a 1-bit signal (DSD). Musically speaking, this operation mode is the icing on the cake and opens up a whole new dimension with the room imaging and high-frequency playback.

The built-in phono MM preamp offers an exceptionally musical reproduction and is identical in design to the highly acclaimed Limetree Phono. The headphone amplifier of the Musicbook also delivers top sound quality and has sufficient output power to drive even demanding headphones. Technically the power amp section of the Musicbook COMBO is identical to the Musicbook POWER. Control and audiophile sound quality go well beyond the price range.

___________________________



DSD-Re-Sampling
Critical for the sound of a digital component is, above all, the digital/analog converter. LINDEMANN therefore uses also the re-sampling process in the Musicbook COMBO which has become known from the Musicbook Source.

In the DSD mode all digital input signals – irrespective of the source – are converted into a high-resolution 1-bit signal (DSD 256) by means of a re-sampling process based on delta-sigma conversion. The resolution is 256 times higher than with the CD. By simple filtering this signal is converted in the converter module directly into an analog signal – without any influence from digital filters or a digital volume control. Digital signal processors (DSP) and their negative sound effects are completely waived. Filtering and volume control take place in the analog domain exclusively. The music signal gained by this “deconstruction“ of the converter is perfectly transparent: with ultimate resolution, brilliant timbres, unrestricted dynamics and a new, absolutely "realistic" atmosphere which reminds of analog reproduction!

___________________________________



IN BRIEF

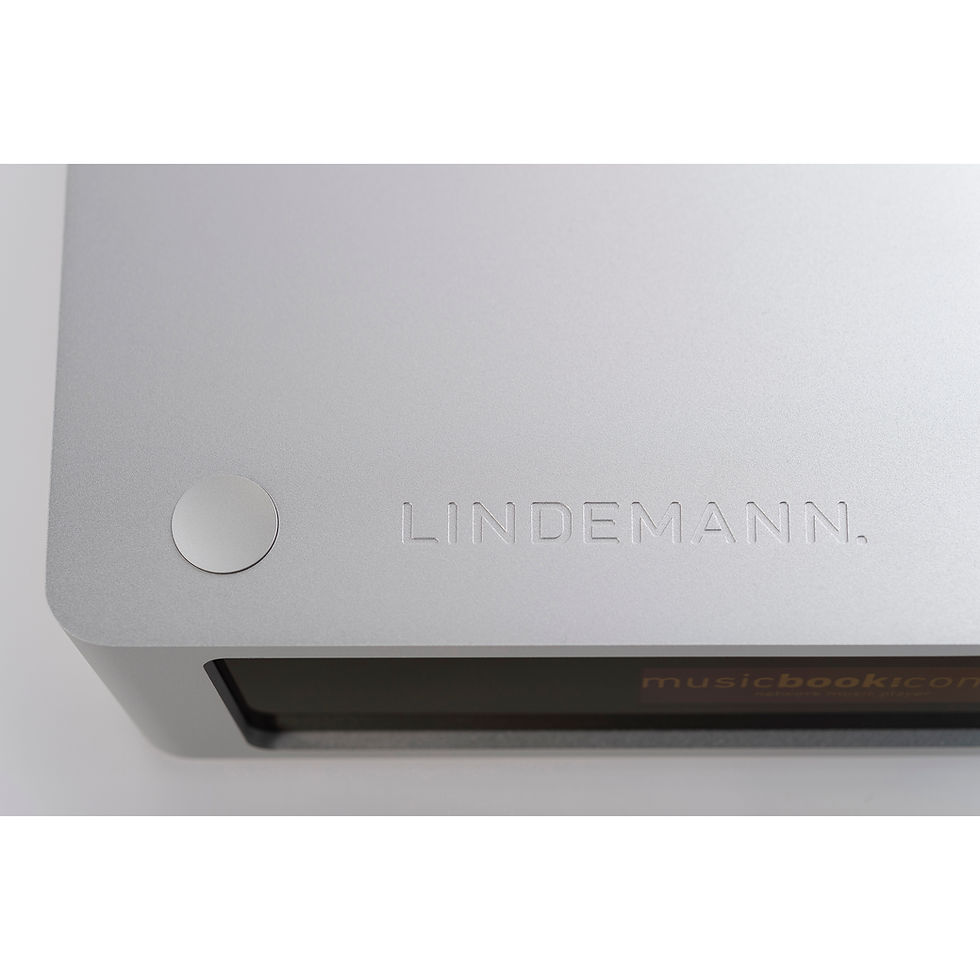

Housing milled from a solid aluminum block | Convenient app for smartphone + tablet (Landscape), iOS + Android | HighRes streaming, also in studio-master quality, up to 384 kHz/24 bit + DSD 256, via LAN/ WLAN | UPnP/DLNA streaming from music servers (NAS) + storage media (harddisk, USB stick) | roon ready | 5 streaming providers: TIDAL, Qobuz, Deezer, Spotify, and HighResAudio | Dual antenna for AC+N WLAN standards to ensure high data rates | Smart re-sampling of all digital signals, optionally native or DSD, with MEMS femto-clock (<0.2 ps jitter) | AK4493 world-class converter | Top-level analog preamp | Powerful onboard headphone amplifier | Top-level onboard phono preamp (MM) | Class-D power amplifier with 2 x 125 W of output power @ 4 ohms | Premium grade integrated phono stage (MM) | Connection to an external CD drive via USB | Bluetooth
AAC | Free IR remote control included | GREEN PRODUCT: extremely low energy consumption (<6 W)

Lindemann Musicbook: COMBO

£3,890.00Price
  • Measurement conditions:  22 °C, 230 V mains voltage, Audio Precision AP2722
    Mains connection: 90 – 240 V, 50 – 60 Hz
    Power consumption:
    0.5 W stand-by, 16 W operation, 160 W max. Dimensions (W x H x D): 280 x 220 x 63 mm (11 x 8.7 x 2.5 in.)
    Weight: 3 kg (6.61 lbs)

    __________________________



    D/A converter

    Resolution: 768 kHz/32 bit and DSD 512
    Dynamic range: >125 dB
    THD & Noise: <0.001 % (@ 0 dB FS)
    Master-Clock: Ultra low jitter MEMS Femto Clock
    Re-Sampling: with 180 dB dynamics and 32 bit resolution, bit-perfect or DSD
    Re-sampling jitter damping: >60 dB
    Converter architecture: two AK4493 DACs in dual differential mono mode, AK4137 re-sampler

    _________________________



    Network player

    Ethernet: 100 Mbit/s
    WLAN: Dual-band 802.11a/b/g/n/ac, WPS support
    Bluetooth: 4.2, A2DP
    USB: High-speed host interface for harddisks, USB sticks,
    CD ROM drives, max. output current 1.5 A
    Supported codecs: WAV, FLAC, AIFF, ALAC, MP3, AAC, Ogg Vorbis, WMA, DSD
    UPnP and DLNA support
    PCM resolution: 44.1 kHz up to 384 kHz, 24bit (WLAN up to 192 kHz)
    DSD resolution: DSD 64 up to DSD 256 (WLAN up to DSD 128) Gapless playback
    Streaming services: TIDAL Connect, Qobuz, Deezer, HighResAudio, Spotify Connect
    Internet radio and podcast
    roon ready

    _____________________



    Analog Preamp

    Inputs: two analog line inputs (RCA) with 50 kOhms of input impedance. Max. input voltage 2.5 V. MM input for connecting a turntable.
    Connection values MM: 47 kOhms / 150 pF / 40 dB gain.
    Output: line level output (RCA). Output impedance: 100 ohms. Max. output voltage: 1 V.
    Volume level control range: 0 to 80 dB in 1 dB steps Balance control: + / - 6 dB in 1 dB steps
    Frequency response: 2 – 200 kHz (-3 dB)
    THD & Noise: < 0,001 % @ 3 V output

    ___________________



    Power amplifier

    Poweroutput: 2 x 130 W @ 4 ohms, 2 x 70 W @ 8 ohms.
    THD&Noise: < 0.03 % @ 10 W into 4 ohms
    Dampening factor: > 500.

    Headphone amp

    Headphone connector: 6.35 mm (1/4“) jack socket
    Headphone gain: 0 dB / 12 dB switchable
    Recommended headphone impedance: 16 - 200 ohms
    Damping factor of headphone output: >100
