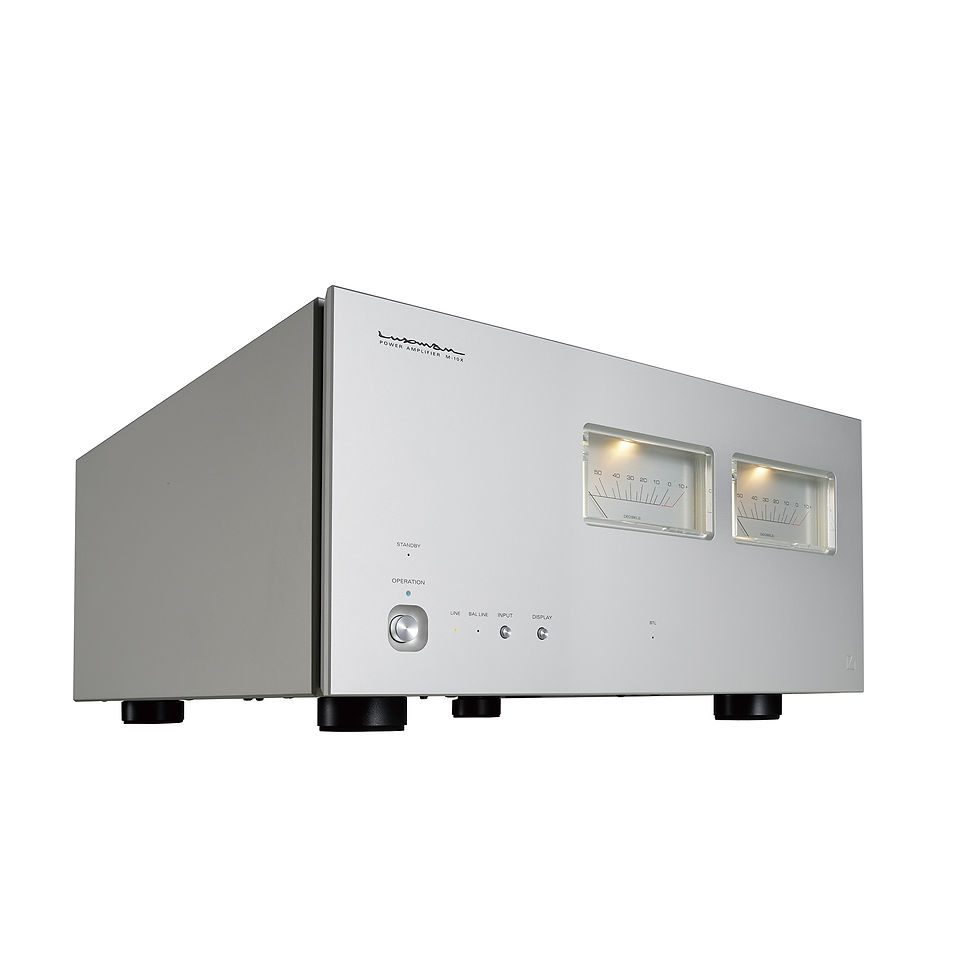

Luxman M-10x power amplifier front view with dual VU meters and clean, modern design.
 Luxman M-10x Power Amplifier

The M-10x is Luxman's flagship stereo/mono power amplifier designed to replace the long-running M-900u, first released in 2013. Years in development, M-10x becomes a premier model in our next-generation lineup to celebrate the 100th anniversary of Luxman’s founding in 1925.

Superbly crafted and with most outstanding sound quality, the M-10x is destined to satisfy audiophiles and music lover’s with its almost limitless loudspeaker drive capability.

Original Luxman amplifier design hallmarks, such as ODNF circuitry were carefully analyzed and then further evolved through extensive computer simulations to achieve a radical improvement in audio performance. Only after repeated new circuit components auditioning and prototype listening tests were the results judged suitable for adoption as “LIFES1.0” in Luxman’s new M-10x.

A three dimensional chassis housing design, in common with the D-10x is featured. Improved LED backlit analog level (VU) meters are employed with the left channel meter exactly centered for BTL-mono use priority. Equipped with 12 volt trigger input/output connections to daisy chain multiple amplifiers in a home theater or enable convenient integration into automated systems.

Luxman M-10x Power Amplifier

£16,000.00Price

  • on their way…

  • Rated output (stereo)

    150 W + 150 W (8 Ω)

    300 W + 300 W (4 Ω)

    Rated output (BTL)

    600 W (8 Ω)

    Instantaneous maximum output (stereo)

    1200 W + 1200 W (1 Ω)

    Instantaneous maximum output (BTL)

    2400 W (2 Ω)

    Input sensitivity

    1.24 V/150 W, load 8 Ω

    Gain 29 dB

    Input impedance

    LINE 51 kΩ

    BAL LINE 28 kΩ

    Total harmonic distortion

    0.003 % or less/1 kHz, 150 W, load 8 Ω

    0.04 % or less/20 Hz-20 kHz

    Frequency response

    +0, –0.1 dB/20 Hz-20 kHz

    +0, –3.0 dB/1 Hz-130 kHz

    S/N ratio

    117 dB (IHF-A weighted, input short)

    Damping factor

    600 (according to Current Injection Method by EIAJ)

    Supplied functions

    • Main power button
    • Input button
    • Phase inverter switch
    • Display button
    • Balanced input terminal x1 • Signal ground terminal
    • AC inlet

    • Operation button
    • BTL selection switch
    • Power meters
    • Unbalanced input terminal x1 • Speaker terminal x1
    • Trigger input terminal
    • Trigger output terminal

    Accessories

    • Power cable
    • Owner’s manual

    • Modular/3.5-mm conversion cable

    • Safety cautions

    Power consumption

    540 W
    290 W (at no input)

    1.0 W (at standby)

    Power supply

    230 V 〜 (50 Hz)

    Max. external dimensions

    440 (W) x 224 (H) x 488 (D) mm
    Weight
    48.4 kg
